Modes Refactoring

Modes Refactoring: Redesigning the Editing Experience in Picsart Windows

Role
Product & UX Designer
Company
Picsart
Year
2025
Platform
Windows Desktop

Overview

Picsart Windows editor was built around a mode-based architecture, where users had to switch between separate sections (e.g., Brushes, Fonts, Images) to perform different actions.

This created a fragmented experience and slowed down editing workflows.

Objective: Redesign the interaction model to reduce mode switching, improve editing speed, and create a more scalable and intuitive system.

Problem

The existing experience introduced several usability challenges:

  • •Frequent switching between modes interrupted the editing flow
  • •Tools were separated from the context in which they were used
  • •Users had to navigate the interface instead of focusing on editing
  • •Increased cognitive load, especially for new users

The system was structured around tools and features rather than user actions.

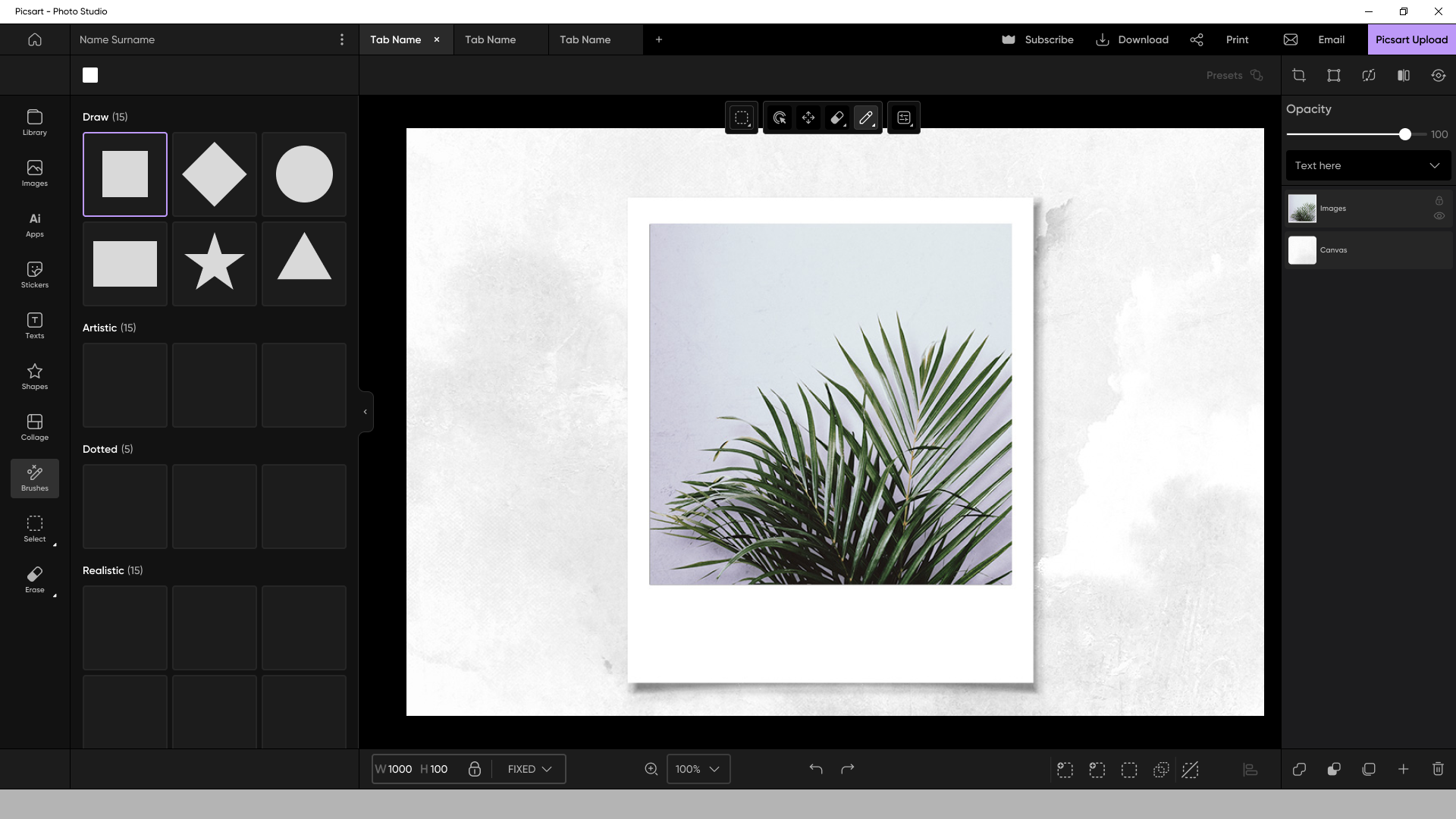

Previous mode-based interface

Previous mode-based interface requiring users to switch between different sections

Role

  • →Product & UX Designer
  • →Defined interaction model and tool behavior
  • →Designed user flows and UI
  • →Collaborated with product and engineering teams

Approach

The redesign focused on shifting from a mode-based system to a contextual, tool-driven interaction model. Instead of navigating between different sections, users would access tools directly within the editing context.

Solution

Introduced a floating contextual menu within the editor, enabling users to perform actions without leaving object mode.

Core tools:
  • •Select
  • •Object Select
  • •Move
  • •Draw
  • •Erase / Restore
  • •Settings (contextual dropdown)

This allowed users to stay focused on the canvas and perform actions in place.

Interaction Design

Default State

  • •On editor open with no selection → Select Tool is active
  • •Settings is disabled
  • •Other tools remain inactive until selected
Draw tool in action

Draw tool with contextual toolbar

Select tool in action

Object selection with contextual menu

Contextual Behavior

  • •Tools activate only when explicitly selected
  • •Settings dynamically updates based on the active tool
  • •UI adapts to user context rather than requiring navigation
Contextual menu

Settings menu dynamically updates based on selected tool

Cross-Object Rules

  • •Draw and Erase work across all object types
  • •Selection works only on images and stickers
  • •Unsupported actions trigger inline guidance

Edge Cases

  • •Selection on unsupported layers (e.g., text, shapes) shows guidance message
  • •Erase on draw layers is permanent (no masking system)
  • •Tool switching preserves editing context

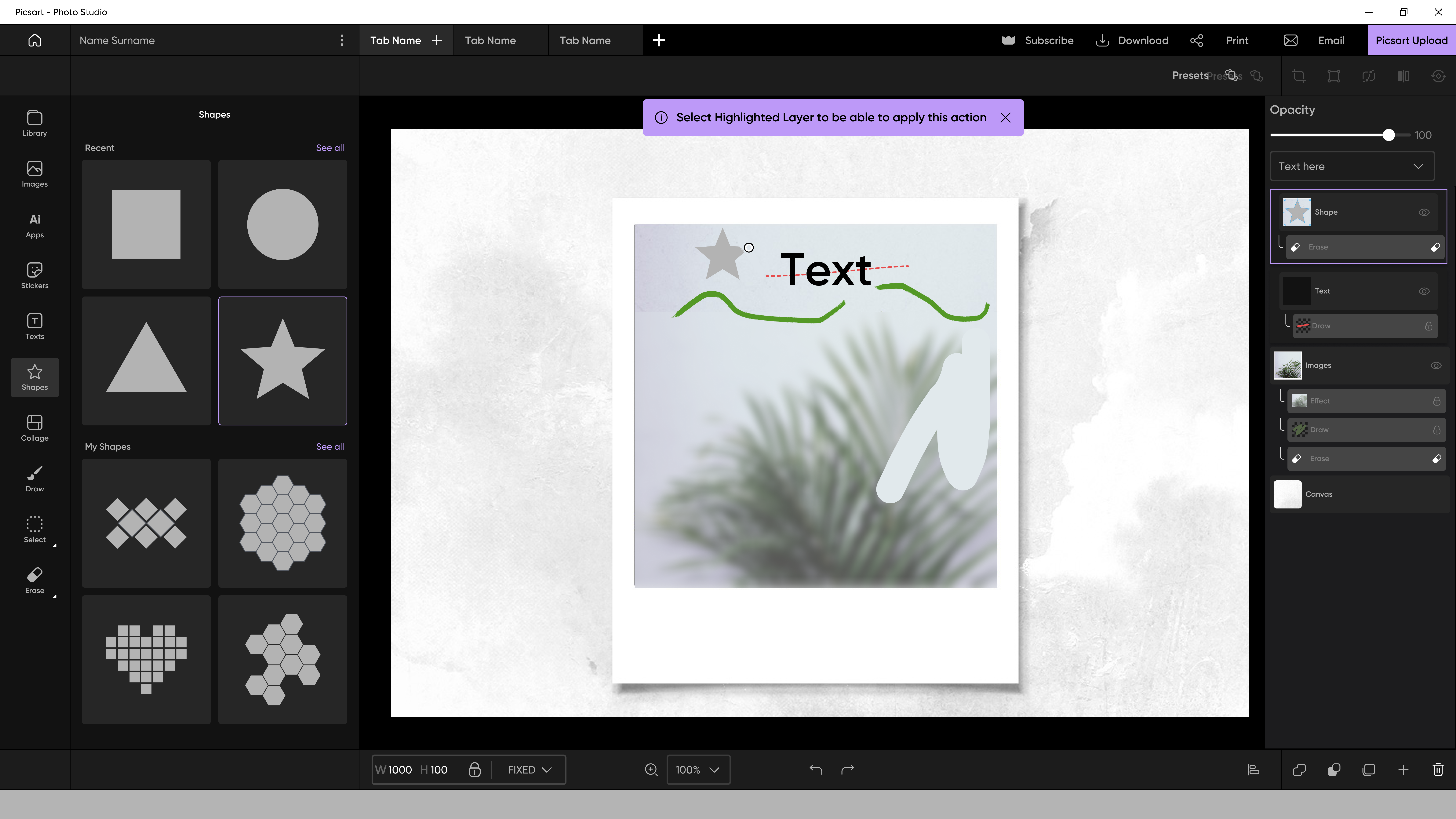

Error handling

Inline guidance message when attempting unsupported actions

Data-Informed Decisions

Tool prioritization was informed by usage data analysis, including:

  • •Tool open vs apply rates
  • •Frequency of use across drawing and selection modes
  • •Most used effects, textures, and actions
Key findings:
  • •A small subset of tools accounted for the majority of interactions
  • •Some visible tools had low actual usage
  • •Selection tools (e.g., lasso, magic) showed higher engagement
Design Implications:
  • •Prioritized high-usage tools in the floating menu
  • •Reduced exposure of rarely used options
  • •Structured dropdowns based on real usage patterns

Impact

  • ✓Reduced friction caused by mode switching
  • ✓Improved editing speed and workflow continuity
  • ✓Increased clarity of tool behavior
  • ✓Improved discoverability of frequently used tools
  • ✓Established a scalable foundation for future editor features
